Tiaano’s e-ETP & e-STP System for Waste Water Treatment
The Electrolytic Effluent Treatment plant (e-ETP) or Electrolytic Sewage Treatment Plant(e-STP) works based on Electro Coagulation (EC), Floatation, Electro Oxidation (EO), Further there is a Precipitation, Floatation, Flocculation in Coagulation and De-colourisation, De-odorisation, Ultra Filtration and Electro Chlorination. In Electro Coagulation Reactor (ECR) the charged ions on contacting numerous pollutants like suspended solids, bacteria, organics, serious metals etc. are neutralize, coagulate, flocculate and settled in the settling tank.
Further coagulated water, pumped into Electro Oxidation Reactor (EOR) through the Bag Filter. This Bag Filter is used to collect the sludge which is very minimum, say 22 gram while treating 1000 Litres of Effluent. In an EOR, by generation of HOCL (Hypo Chlorous Acid), Chlorination, Ozonation, etc. and removes colour and odour. Following which the oxidized water (treated water) is collected in the treated water tank, after filtration by media filter and activated carbon filter.
This treated water shall be utilized for gardening/irrigation directly Orelse the same shall be used for vessel cleaning, floor cleaning, toilet flush, etc. after chlorination.

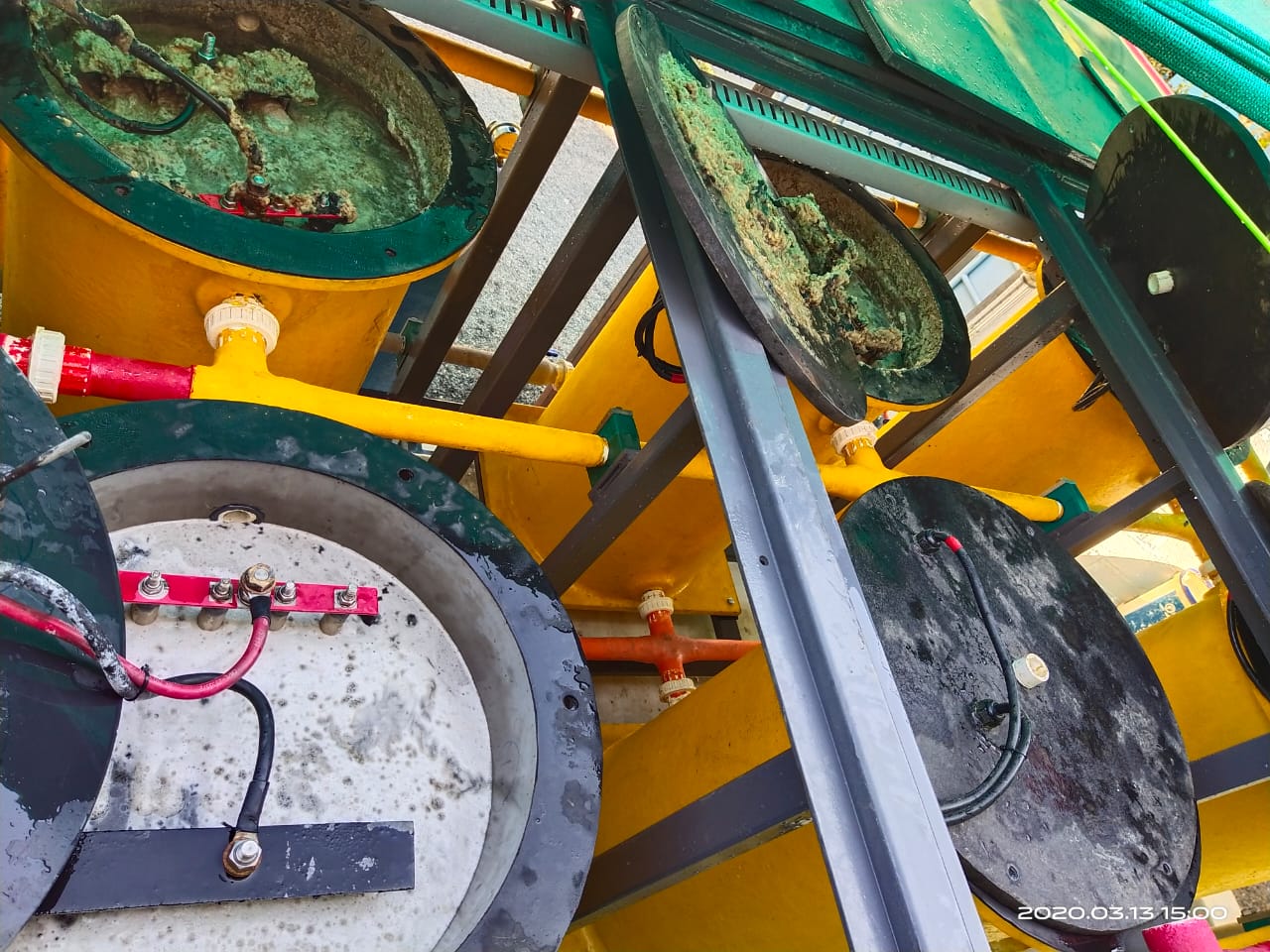

The attached image is self explanatory.
