(In Situ Generation of Mixed Oxidant Sanitizer)
Chloro-Sanitizer, manufactured by Tiaano which generates a concentrated Mixed Oxidant Solution (MOS), using edible salt. The solution destroys all classes of micro organisms (virus / bacteria / Protozoa) e.g. COVID 19. Generator is available in various capacities suitable for small communities, disaster relief, humanisation missions and water boards. Specifications of Standard Chloro Sanitizers are...

Generation of MOS 25 liters per Batch 50 liters per Batch 100 liters per Batch
Model Number Tiaano MOS / B-0.025 Tiaano MOS / B-0.050 Tiaano MOS / B-0.100
Production Batch 8 Hours 8 Hours 8 Hours
Electricity Requirement 230 V, 50 or 60 Hz 230 V, 50 or 60 Hz 230 V, 50 or 60 Hz
Edible Salt per Batch 750 Grams 1,500 Grams 3,000 Grams
MOS Concentration 8,000 ppm 8,000 ppm 8,000 ppm
Liters of Sanitizer @ 5,000ppm  40 80 160
Liters of Sanitizer @ 500ppm  400 800 1,600
Liters of Sanitizer @ 100 ppm  2,000 4,000 8,000
Liters of Sanitizer @ 50 ppm  4,000 8,000 16,000
Liters of Sanitizer @ 02 ppm  1,00,000 2,00,000 4,00,000

  •  Sanitizer for disinfection surfaces, objects & gloved hands etc.
  •  Sanitizer for disinfecting surfaces that have contact with skin.
  •  Sanitizer to kill the virus of Covid 19.
  •  Sanitizer to prevent the infection.
  •  Sanitizer for disinfection of Municipal water for drinking.

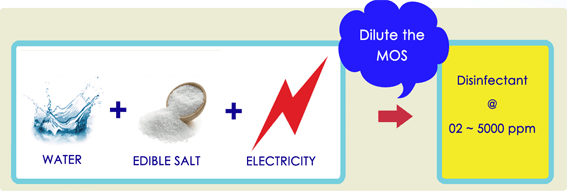

How to Produce Disinfectant
 Chlorinator Models

How to Formulate Disinfectant
  •  Make a brine solution in a System by mixing eatable kitchen Salt.
  •  Connect electrical power to the Chloro-Sanitizer, Where it is converted into      concentrated Mixed Oxidant Sanitizing solution.
  •  Collect the MOS in another closed container.
  •  Add water to get 02~5000 ppm disinfectant as tabulated above.
  •  Spray or clean the surface with the Sanitizing solution.
  •  It kills viruses, bacteria, and most protozoa.
  • Avoid open flames, sparks, smoking and other ignition sources in the vicinity of on-site generation system and associated equipments.
  • Do not drink | Do not wash mouth by the sanitizing solution or MOS.

Fresh Water Chlorinator

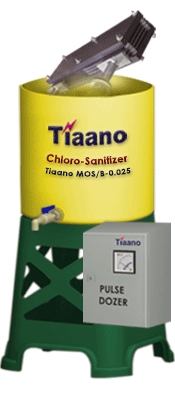

Tiaano Chloro-Sanitizer

Download the Documents

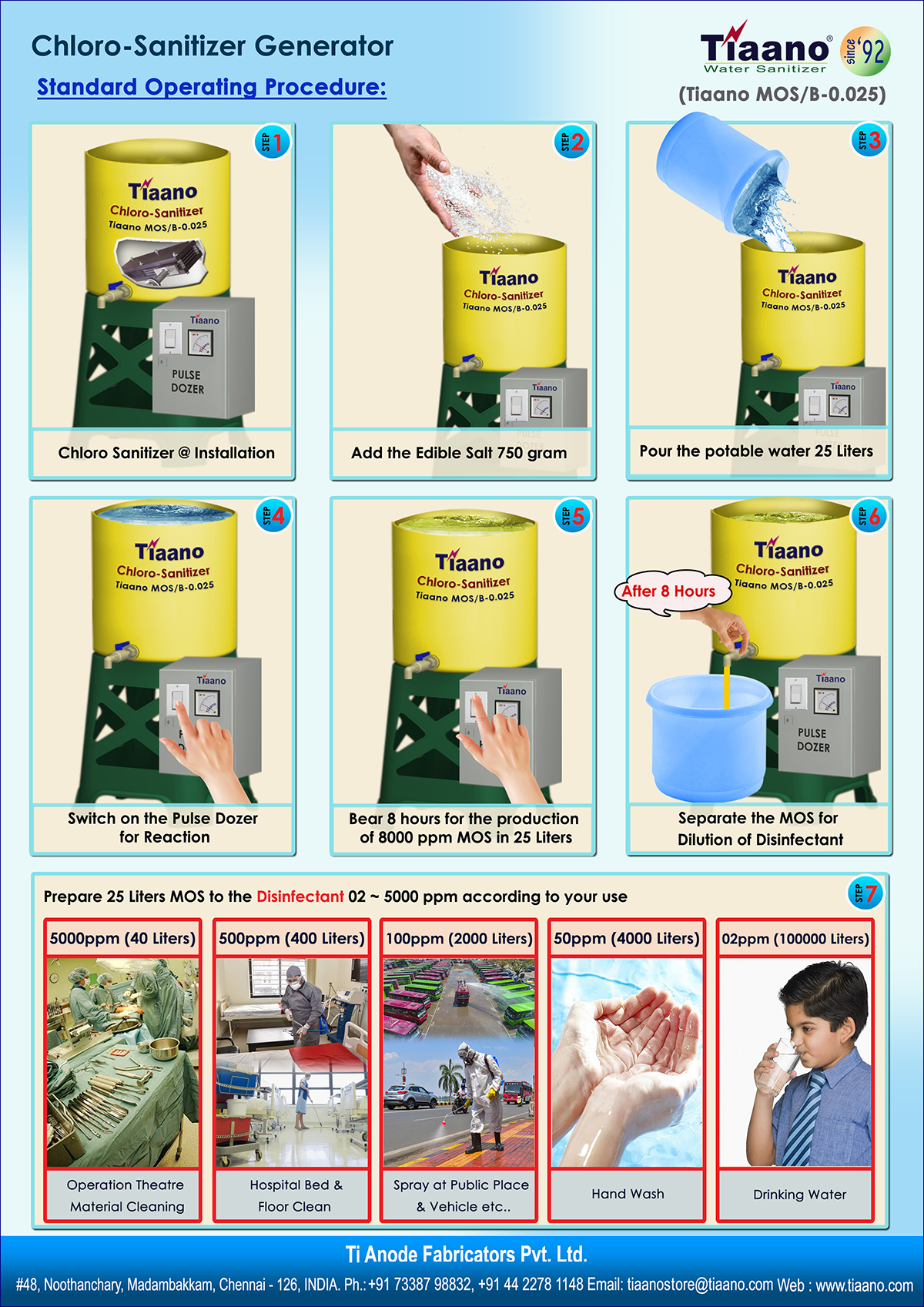

Operating Procedure

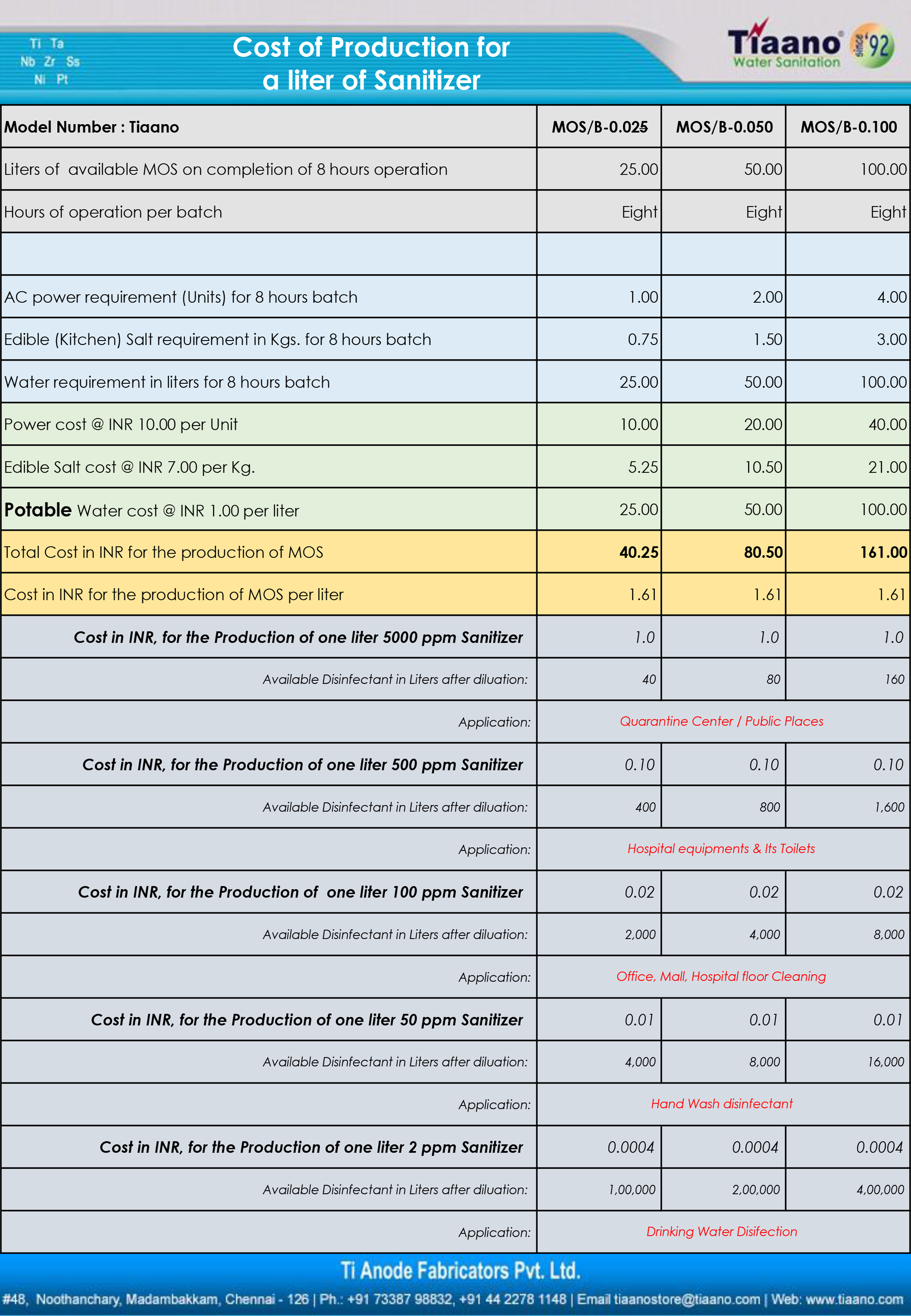

Cost of Production

Material Safty Data Sheet

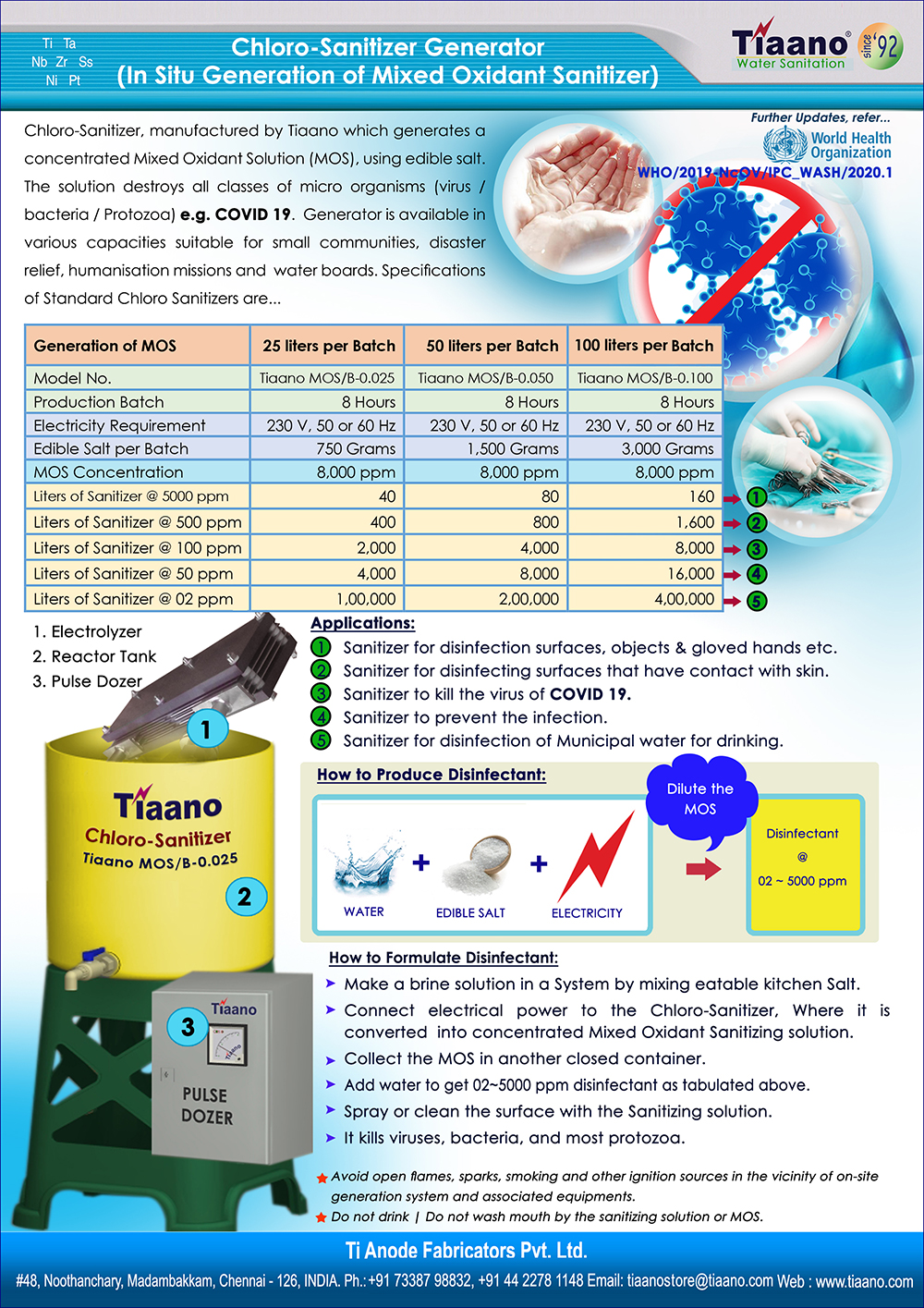

Product Overview

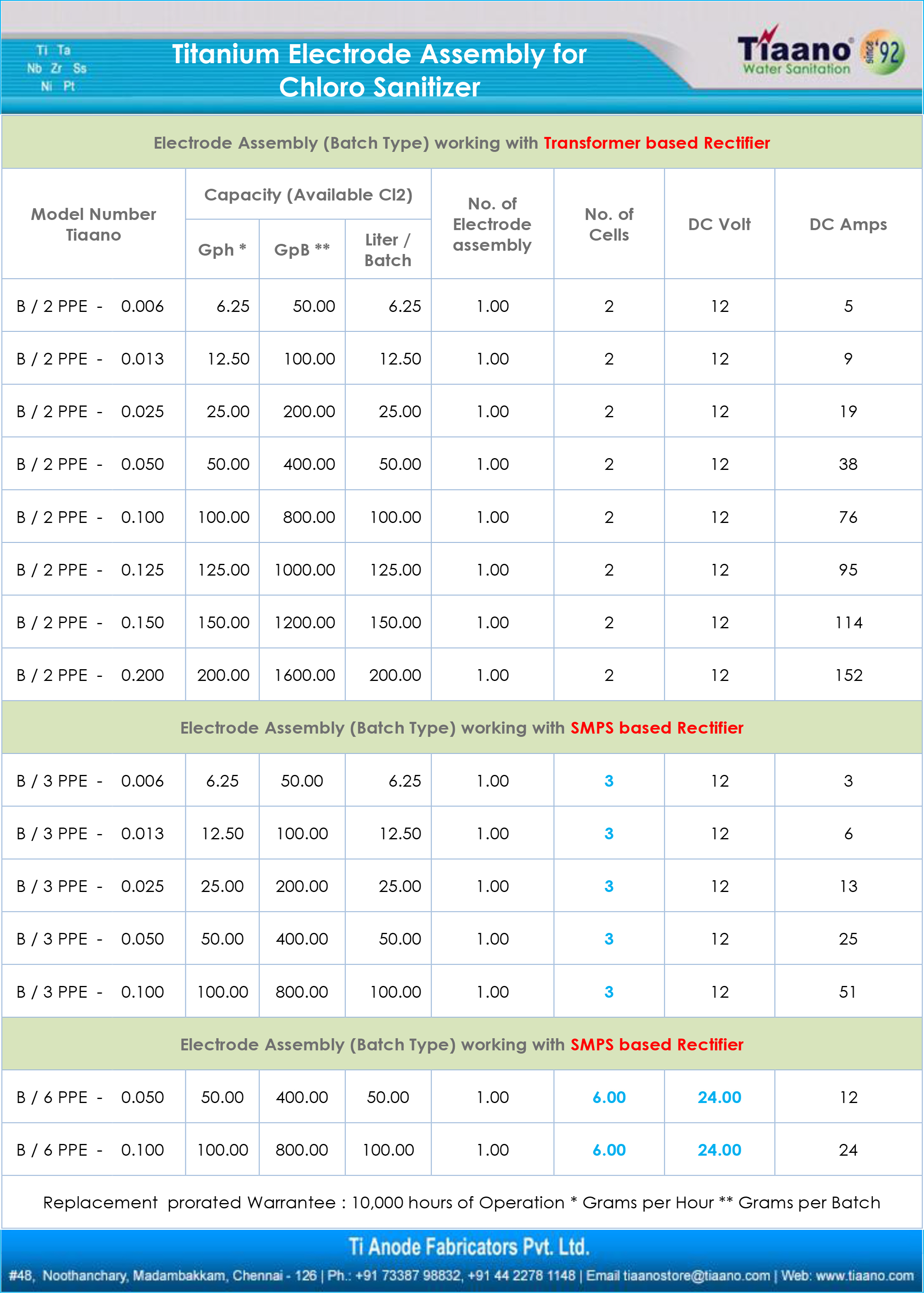

Electrode Assembly

Production of Disinfectant
